Software Design

Software implementation is the interface between the mechanical and electrical design. We developed state machines and interrupt response routines for the E128 micro-controller.  You can explore the:

• Strategic brains of the software, implemented in a hierarchical state machine
• ​Source code (and pseudocode)

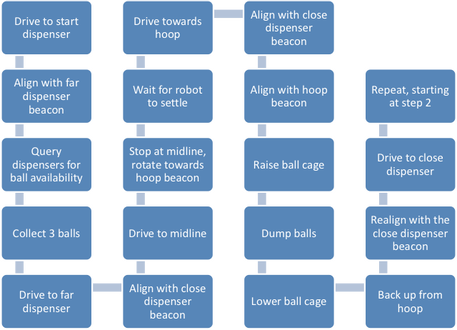

The basic strategy flowchart can be seen below.  The software was designed to implement this logic.
